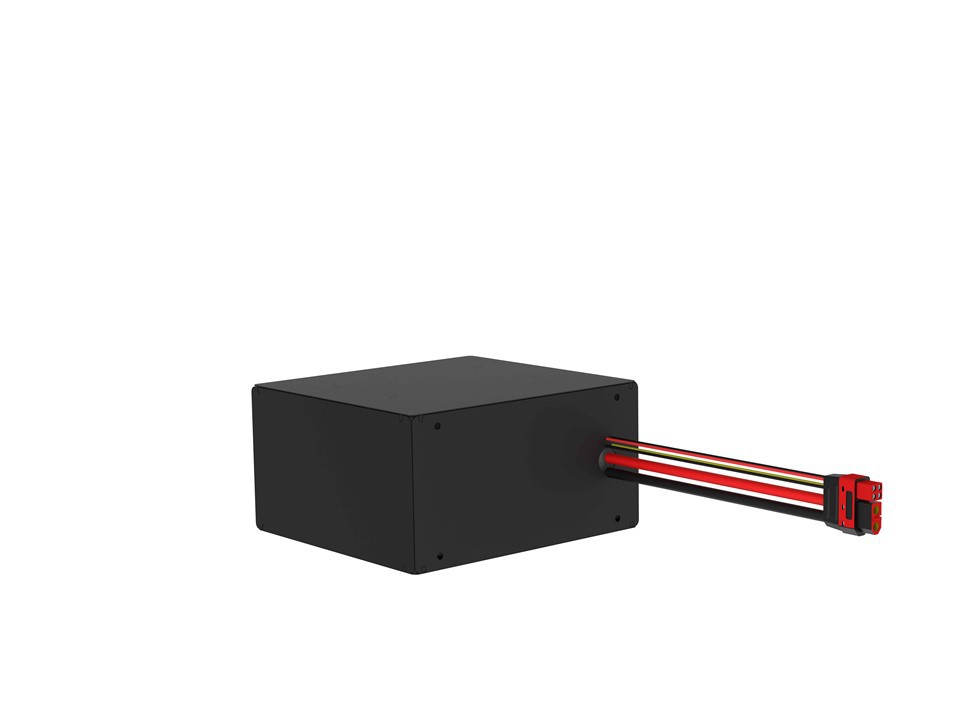

Shenzhen Ryder Electronics Co., Ltd. is one of the leading manufacturers and suppliers of 36v 15ah lithium-ion battery pack in China. Welcome to buy CE approved batteries in stock here and get free sample from our factory. All customized products are with high quality and low price.
Engineered for Peak Performance & Safety
Ryder established in July 2005, has been committed to pioneering R&D in lithium battery system integration and customized solutions. With two decades of accumulated technical expertise, our company has secured comprehensive proprietary intellectual property rights across core competencies, including system architecture design, Battery Management System (BMS) development, battery pack (PACK) engineering, power supply innovation, electronic circuitry design, software development, industrial design, and precision mold development.
These technological achievements have been validated by dual certifications as a National High-Tech Enterprise and a "Specialized, Sophisticated, Innovative and Distinctive" (SSID) SME, underscoring our industry leadership.
Technical Specifications
|
Model |
Li-21700-10S3P-36.5V 15Ah |
|
Cell Type |
EVE INR21700-50E / 50B (Grade-A) |
|
Configuration |
10S3P (10 series, 3 parallel) |
|
Nominal Voltage |
36.5V |
|
Nominal Capacity |
15Ah (Typical) / 14.1Ah (Minimum) |
|
Charge Cut-off Voltage |
41.5V |
|
Discharge Cut-off Voltage |
28V |
|
Max. Continuous Discharge Current |
≤45A |
|
Max. Continuous Charge Current |
≤30A (21~30°C condition) |
|
Cycle Life |
≥500 cycles @0.2C to 80% capacity |
|
Internal Impedance (ACIR) |
<90mΩ |
|
Weight |
Approx. 2.5 ± 0.2 kg |
|
Dimensions (L×W×H) |
142 ± 1 × 132 ± 1 × 75 ± 1 mm |
|
Connector Type |
XT60 (Charge/Discharge port) |
|
Communication Protocol |
UART (19200 baud, TTL 3.3V) |
|
Operating Temperature (Charge) |
3°C ~ 45°C |
|
Operating Temperature (Discharge) |
-15°C ~ 60°C |
|
Storage Temperature |
-20°C ~ 60°C (short-term) / 10°C ~ 25°C (long-term) |
|
Certifications |
UL, CE, UN38.3, RoHS |
Smart BMS Protection Architecture
Our in-house developed BMS (model RYD-10S V1.0) provides comprehensive protection and intelligent battery management, ensuring optimal safety and performance in all operating conditions.
Over-Charge Protection
Over-Discharge Protection
Multi-level over-voltage protection (4.230V
/ 4.350V / 4.380V) with hardware and software redundancy.
Discharge cut-off at 2.800V per cell, with recovery voltage of 3.300V
Over-Current & Short Circuit
Primary 50A / Secondary 60A / Tertiary 80A protection. Short circuit response within 480µs.
Temperature Monitoring
NTC sensors (10KΩ B3435) with charge/discharge high/low temperature cut-off.
Cell Balancing
Passive balancing starts at 3.9V with
≥30mV difference. 42mA balance current.
Low Power Modes
Normal (~1mA), Sleep (~200µA), Shutdown (~15µA). Auto sleep after 20s inactivity.
Key Switch Control
Support discharge ON/OFF with 3-second button delay for power-on.
Auto Recovery & Lock
Auto-recovery after protection events. Lock requires charger/load removal after 3 faults/10min.
Cell Specifications
|
Cell Model |
EVE INR21700-50E (High Energy Density) |
|
Nominal Capacity |
5.0Ah (Typical) @0.2C |
|
Minimum Capacity |
4.95Ah @0.2C |
|
Nominal Voltage |
3.65V |
|
Charge Voltage |
4.2V ± 0.05V |
|
Discharge Cut-off Voltage |
2.5V |
|
Standard Charge/Discharge Current |
1C (5A) |
|
Max Discharge Current |
3C (15A, surface temperature cut-off at 70°C) |
|
Internal Resistance (ACIR) |
≤18mΩ |
|
Cycle Life |
≥70% capacity after 1000 cycles (0.5C charge / 1C discharge) |
|
Weight |
68 ± 2g |
|
Dimensions (D×H) |
21.15 ± 0.10 × 70.15 ± 0.15 mm |
Quality Assurance & Environmental Testing
Certified Testing Environmental Validation
UN38.3 Transportation Safety UL / CE Product Safety
ISO 9001:2015 Quality Management
Temperature Cycling: -40°C to +85°C Humidity: 60% ± 25% R.H. Accelerated Lifecycle Validation
RoHS / REACH Compliance
Vibration (10-55Hz) & Mechanical Shock
Application-Specific Stress Testing Multi-layer QA = Zero-Defect Standard
Applications
This versatile 36V 15Ah battery pack is engineered for a wide range of mobility and energy storage applications:
Light Electric Vehicles
E-bikes, e-trikes, low-speed quadricycles, e-scooters
Power Tools
Cordless drills, saws, garden equipment
Energy Storage
Off-grid solar storage, backup power system
Medical Devices
Portable medical equipment, mobility aids
Consumer Electronics
Robotics, portable speakers, instrumentation
Industrial Equipment
AGV, material handling, inspection robots
Storage & Transportation Guidelines
Storage Transportation
Store in cool, dry, well-ventilated area
Optimal: 25±5°C, 60±15% RH
Maintain 20-40% SOC for long-term storage
Recharge every 3 months to prevent over-discharge
UN38.3 certified for air/sea/land transport
Do not stack cartons over 7 high
Max transport temperature: 65°C
Keep away from water and extreme heat
Warranty & Support
Warranty Period: 12 months from date of manufacture or 500 charge/discharge cycles (whichever comes first). Extended warranty options available upon request.
Technical Support: Our engineering team provides full application support, including DFM analysis, BMS customization, and integration guidance. Custom voltage, capacity, connector, and communication protocol options available.
"Our 20-year expertise ensures your batteries outperform in safety, energy density, and TCO." – Ryder Engineering Team
Why Partner With Ryder?
Manufacturing Excellence
50-acre industrial park with 45,000m² production floor, 84,000m² built-up area, 10,000m² logistics warehouse.
R&D Leadership
500+ employees, 12% dedicated R&D, core team members with 15+ years power lithium battery expertise.
Global Certifications
National High-Tech Enterprise, SSID SME, ISO, UL, CE, UN38.3.
End-to-End Integration
From cell selection, BMS design, PACK assembly to final testing – all in-house.
Customization Capability
Any voltage, capacity, mechanical envelope, BMS logic, and communication protocol (UART/CAN/RS485).
Proven Track Record
Trusted by clients across 40+ countries, Fortune 500 supply chain partnerships.
Ready to Power Your Application?
Request a custom quote – provide your voltage, capacity, application, and certification requirements.
