Details:

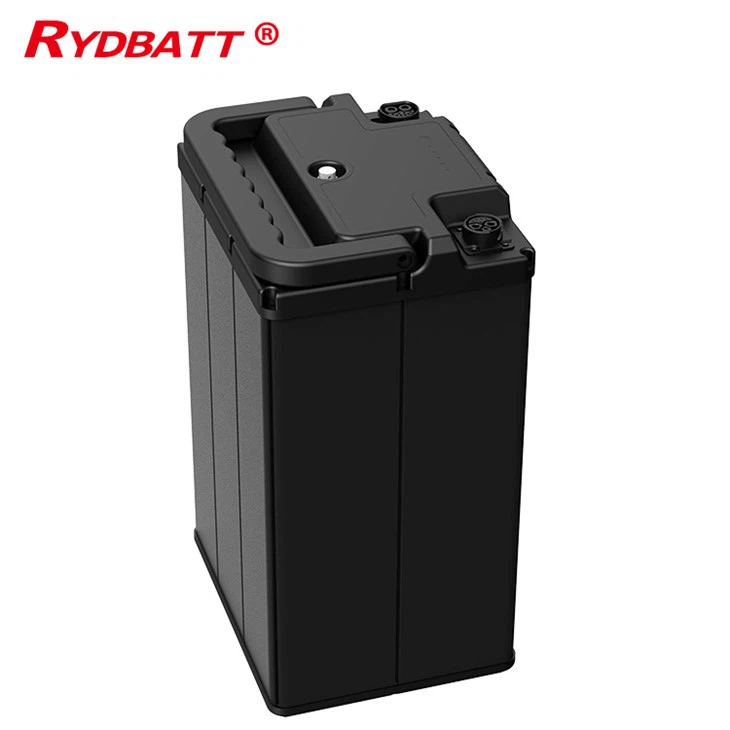

RYDBATT RYDM7240 72V 40Ah NMC battery: 20S8P, 80A continuous / 160A peak, CAN/RS485, IP67. 2.88kWh mid-power pack for e-motorcycles, cargo trikes & AGV. OEM/ODM.
Send Inquiry
Description
Send Inquiry



RYDBATT RYD2105 - 21.6V 5.1Ah 6S2P Compact Device Battery (OEM/ODM)

The RYD2105 is a 110Wh-class 6S2P 18650 module built for device manufacturers who need a small, stable and protection-rich power core. Smart PCM with CW1274 cell balancing, NTC temperature sensing, bracket structure and customizable footprint - ready to drop into medical, instrument and robotic products.


✓ 6S2P 18650  ✓ 21.6V 5.1Ah / 110Wh  ✓ CW1274 Balancing  ✓ NTC Monitoring  ✓ ≤5A Continuous  ✓ Compact & Customizable




Our factory & Equipment


Lorem ipsum dolor sit, amet consectetur adipisicing elit.

product-695-792
RYD2105 Pack Front
product-691-807
PCM & Balancing Board
Bracket & Harness Detail
Bracket & Harness Detail

Core Specifications



Model RYD2105 (Li-18650-6S2P)
Chemistry Li-ion NCM, Grade-A 18650 cells (3.6V / 2550mAh class)
Configuration 6S2P (6 series × 2 parallel, 12 cells)
Nominal Voltage 21.6V (25.2V charge / 16.5V cutoff)
Capacity / Energy 5.1Ah / 5100mAh · 110.16Wh
Continuous Discharge ≤5A
Max Charge Current ≤2.6A
PCM Over-charge / over-discharge / over-current / short-circuit / temp protection
Cell Balancing CW1274, odd-even time-sharing equalization, 30–50mA
Temperature Sensing NTC 10K (B3950±1%) on PHR-2P
Connectors JST VHR-2N discharge + NTC harness (customizable)
Structure PCM bracket + PET/PVC insulation + heat shrink
Dimensions (ref.) ≈140 × 39 × 66 mm
Weight ≈635 g
Cycle Life 300 cycles @ 80% capacity retention (0.2C)
Operating Temp. Charge 10–45°C / Discharge -15–60°C
Storage 20–40% SOC, 0–30°C, recharge every 3 months



Target Applications

🩺
Medical Devices

📟
Portable Instruments

🤖
Cleaning / Service Robots

🚲
Light Mobility & E-Bikes

🔦
Professional Cordless Tools

📡
IoT & Backup Power

Why RYD2105 for Device OEMs




Cell Consistency

Graded 18650 cells, IR/OCV matched per batch.

Active Balancing

CW1274 keeps 6 strings aligned, extends pack life.

Thermal Visibility

NTC feed for host-side temp interlock.

Mechanical Stability

Bracket + insulation + shrink, vibration resistant.

Compact Footprint

110Wh under common air-transport threshold.

Custom-Ready

Size, connector, harness, label all projectable.



Quality & Validation



Stage Control Point
Cell incoming Capacity / IR / OCV grading per batch
PCM test OV/UV/OCP/SCP/temp/balancing verification
Formation Full charge-discharge cycle before seal
Reliability Vibration, thermal cycle, drop, insulation check
Traceability Cell lot → PCM batch → pack serial → test record
Shipping ≤50% SOC, UN3481 declaration ready



Procurement FAQ

Q: Is 5A enough for my device?

A: For low-to-moderate drain devices (medical, instruments, small robots) yes. If your peak exceeds 5A, tell us - we tune PCM rating or step up to a higher-C cell layout.

Q: Can you match our enclosure?

A: Yes. Share the battery bay drawing (L×W×H, fixed points, connector side); we re-layout the 6S2P + bracket to fit.

Q: Do you support fuel gauging?

A: Base version uses smart PCM + NTC. SMBus/I2C gauge can be added for host-side SoC reporting.

Q: What about air shipping?

A: 110Wh sits under the typical 100Wh? No - it is slightly above; we ship as UN3481 Section II with proper documentation and ≤50% SOC.

Q: Lead time for OEM orders?

A: Sample 7–15 days, mass production 30–45 days after drawing confirmation.
