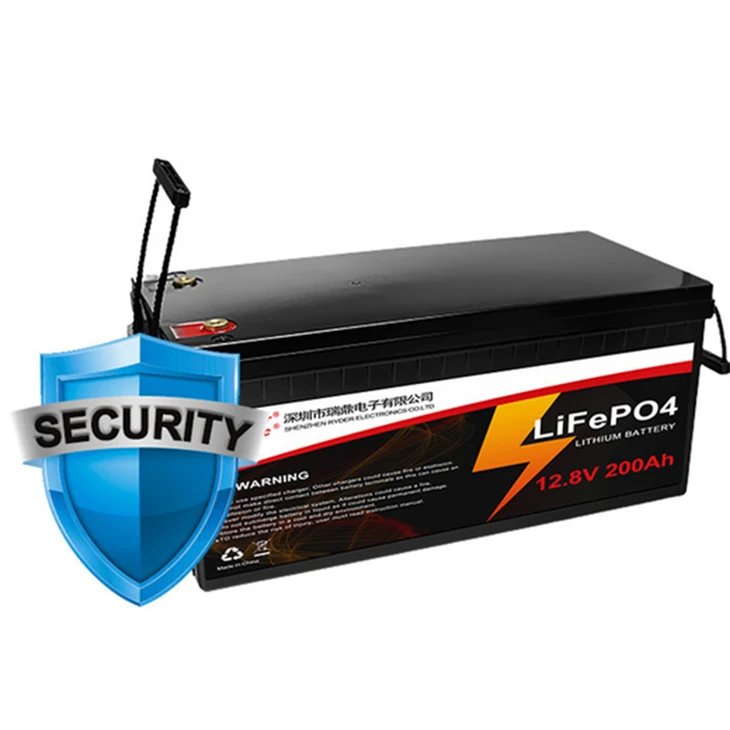

Product Overview
The 12.8V 200Ah LiFePO4 Battery Pack represents the pinnacle of energy storage technology, combining ultra-high capacity (212.5Ah nominal) with military-grade safety features. Engineered with premium 32700 cells and a 200A smart BMS, this battery delivers 2000+ deep cycles at 80% DoD - perfect for solar storage, EV conversions, marine applications, and industrial backup systems.
5 Competitive Advantages
Unmatched Cycle Life
2000+ full cycles at 80% depth of discharge
5-7 year service life in daily use (vs 1-2 years for lead-acid)
Intelligent 200A BMS Protection
Multi-layer safeguards:
Overcharge/Over-discharge (13.8V/8.8V cutoffs)
Short-circuit (<0.1ms response)
Temperature control (-20°C~60°C operational range)
Cell balancing (±20mV accuracy)
Space-Saving Design
30% smaller footprint than comparable AGM batteries
27kg lightweight for easier installation
Rapid Recharging
200A max charge current enables 2-hour fast charging
Compatible with solar/wind/AC chargers
Scalable Power Solutions
Parallel up to 4 units (800Ah total)
Series connection for 24V/48V systems
Safety Certifications
Complies with CE, ROHS, UL, MSDS, and UN38.3 standards, ensuring safety and reliability.
Core Technical Specifications
|
Parameter |
Specification |
|
Model Number |
Custom OEM/ODM Available |
|
Chemistry |
LiFePO4 (Lithium Iron Phosphate) |
|
Nominal Voltage |
12.8V |
|
Nominal Capacity |
212.5Ah (204Ah minimum) |
|
Energy Density |
160Wh/kg (35% higher than AGM) |
|
Dimensions (L×W×H) |
524×233×229mm |
|
Weight |
27kg (60% lighter than equivalent lead-acid) |
|
Cycle Life |
2000+ cycles @80% DoD |
|
Max Continuous Current |
200A |
|
Peak Current (5s) |
400A |
|
Charge Voltage |
13.8V±0.2V |
|
Discharge Cut-off |
8.8V (BMS protected) |
|
Operating Temp |
Charge: 0°C~45°C / Discharge: -20°C~60°C |
|
Self-Discharge |
<3% per month |
|
Terminals |
M8 bolt (customizable to Anderson/SB50) |
Industry-Specific Applications
The RYDBATT Lithium-ion Battery Packs are versatile and suitable for a wide range of industries and applications, including:
Solar Energy Storage
Off-grid solar systems
Hybrid inverter compatibility
4+ hours backup at 0.2C discharge
Electric Mobility
E-bikes/Scooters | Golf Carts | Wheelchairs
30% longer range vs lead-acid
Marine & RV Power
Powers fridges/lighting/navigation
Saltwater corrosion-resistant
Industrial Equipment
Telecom base stations | Medical devices | UPS
-20°C cold-start capability
Manufacturing & Quality Assurance
- ISO 9001/14001 Certified Factory
- 100% Cycle Testing Before Shipment
- UL1973/UN38.3 Compliance
- Automated Production Lines (0.02% defect rate)
Ordering Information
Packaging Options:
Standard: Reinforced carton + EPE foam
Premium: Wooden crate (IP67 waterproof)
Production Lead Time:
Samples: 7-10 days
Bulk orders (100+ units): 15-30 days
Payment Terms:
30% deposit, 70% before shipment
Accept T/T, LC, Western Union
Global Shipping:
FOB Shenzhen
DDP/DDU options available
Why Choose Us?
20+ Years Battery Manufacturing Expertise
OEM/ODM Services Available
In-House BMS R&D Team
50,000+ Units Monthly Capacity
