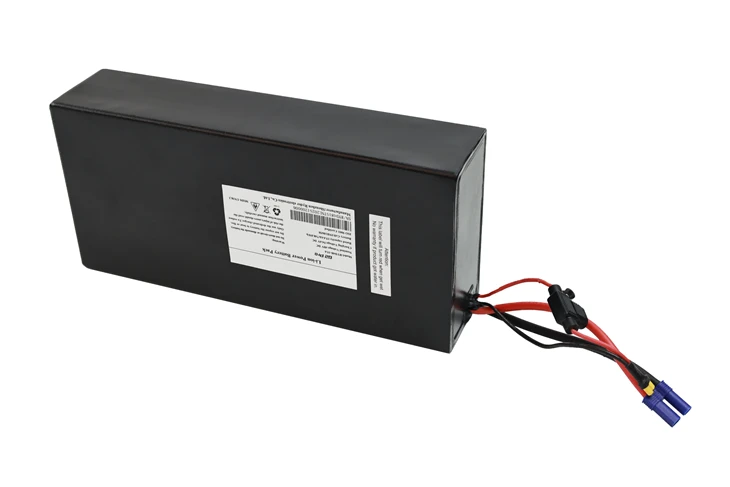

Shenzhen Ryder Electronics Co., Ltd. is one of the leading manufacturers and suppliers of 13s6p 18650 cells, 20a continuous, 4kg lightweight design in China. Welcome to buy CE approved batteries in stock here and get free sample from our factory. All customized products are with high quality and low price.
Technical Specifications:
|
Cell Type |
13S6P, 78 cells |
|
Nominal Voltage |
46.8V (Standard 48V system) |
|
Typical Capacity |
15.6Ah |
|
Minimum Capacity |
14.2Ah |
|
Charge Cut-off Voltage |
54.6V |
|
Discharge Cut-off Voltage |
36.4V |
|
Charger Voltage |
53.95V |
|
Max Continuous Discharge Current |
≤ 20.0A |
|
Max Charge Current |
≤ 2.0A |
|
Charge Temperature Range |
10°C ~ 45°C |
|
Discharge Temperature Range |
-10°C ~ 60°C |
Frequently Asked Questions (FAQ)
What is the actual capacity and voltage of this battery pack?
The nominal voltage is 46.8V (compatible with 48V systems). The typical capacity is 15.6Ah with a guaranteed minimum of 14.2Ah. It uses a 13S6P configuration (78 cells).
What is the maximum power motor I can use with this battery?
With a maximum continuous discharge current of 20A at 46.8V, this battery can safely power motors up to approximately 900W–1000W (peak handling is higher but sustained output is best kept under 20A).
What is the lifespan of this battery?
This model offers a superior 500-cycle warranty (vs. the industry standard 300 cycles). Under standard usage and proper storage, it maintains 80% of its original capacity for 500 charge/discharge cycles, providing roughly 2–3 years of daily use.
Who manufactures this battery?
This battery is manufactured by Shenzhen Ryder Electronics Co., Ltd. - a National High-Tech Enterprise established in 2005. The company operates a 50-acre industrial base in Huizhou (84,000㎡), employs over 500 staff, and holds extensive patents in BMS and battery integration.
