Shenzhen Ryder Electronics Co., Ltd. is one of the leading manufacturers and suppliers of 60v 30ah 1800wh electric motorcycle battery in China. Welcome to buy CE approved batteries in stock here and get free sample from our factory. All customized products are with high quality and low price.
Core Highlights of the RYDM6030
Six reasons this 60V 30Ah lithium battery keeps earning its place on modern electric motorcycles.
Real 1800Wh Energy in a 15 kg Pack
At 1800Wh nominal energy and just 15 kg net weight, the RYDM6030 delivers roughly 120Wh/kg at pack level. Compared with a same-class lead-acid pack, this 60V 30Ah lithium battery saves meaningful weight, which directly improves handling and reduces chassis wear over time.
60A Continuous Discharge for Real Riding Loads
A 60A continuous discharge rating, with short-duration peak headroom for launch and hill climbs, means this 60V lithium battery does not sag when the road turns steep or the rider carries a passenger. The 20S2P layout is engineered for stable output across the full discharge curve, not just a headline peak number.
30A Charging - Back on the Road in Hours
Maximum continuous charging current is 30A, so a standard 60V charger refills the pack in a few hours instead of overnight. For fleet and delivery operators that shortens downtime and increases vehicles-per-charger-per-day. Charger sizing and current limits can be configured per project.
CAN, RS485 and Bluetooth as Standard
This is the section most vehicle builders care about. The RYDM6030 comes with CAN and RS485 communication standard, plus Bluetooth for smartphone or dashboard monitoring. Data available to the controller typically includes state of charge, pack voltage, current, cell voltage, temperature and fault flags. GPS tracking is available as an option.
IP67 Sealed - Rain, Spray and Wash-down Safe
An IP67 enclosure rating means dust-tight and protected against temporary immersion. For e-moto scooters and delivery motorcycles that live outdoors, this removes the water-ingress question entirely and allows pressure washing in service bays.
Multi-Layer BMS Protection
The integrated battery management system provides over-charge, over-discharge, over-current, short-circuit and temperature protection, with cell balancing to keep the pack consistent over time. This is what makes a 60V 30Ah lithium battery safe to install in a road vehicle rather than only in a stationary application.
Applications - Where This 60V 30Ah Battery Fits
The RYDM6030 60V 30Ah lithium battery is engineered for two-wheel and light-vehicle platforms that need more than a small commuter pack.
| Application | Why it fits |
|---|---|
| Electric motorcycles (e-moto) | 60A continuous discharge covers urban riding, highway cruising and hill terrain |
| Electric scooters / electric mopeds | 184 × 156 × 320 mm footprint fits common step-through frames and battery boxes |
| Electric delivery motorcycles | 30A fast charging minimises downtime between shifts |
| Electric tricycles and cargo e-trikes | 15 kg pack and 1800Wh energy balance load capacity and vehicle weight |
| E-bikes and light e-moto EV platforms | CAN / RS485 integration lets the controller manage charge and discharge limits |
| Battery swap and fleet operations | Standardised dimensions, protocol and monitoring simplify pack interchange |
| Low-speed electric vehicles and mobility aids | IP67 sealed enclosure for outdoor and rough-road use |
E-Moto & Electric Scooter
Sealed for all-weather riding, sized for step-through frames.
Delivery & Fleet
30A charging and remote monitoring for high-utilisation fleets.

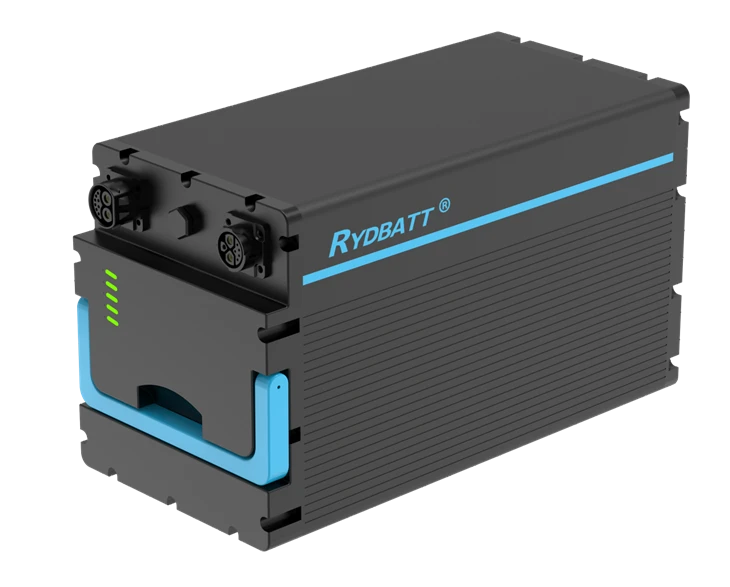

Technical Specifications
Full parameter table for the RYDBATT RYDM6030 60V 30Ah 1800Wh electric motorcycle battery.
| Parameter | Specification |
|---|---|
| Model | RYDM6030 |
| Brand | RYDBATT |
| Battery Type | Lithium-ion (Li-ion) rechargeable battery pack |
| Nominal Voltage | 60 V |
| Nominal Capacity | 30 Ah |
| Rated Energy | 1800 Wh |
| Cell Configuration | 20S2P |
| Max. Continuous Discharging Current | 60 A |
| Max. Continuous Charging Current | 30 A |
| Waterproof Grade | IP67 |
| Net Weight | 15 kg |
| Dimensions (L × W × H) | 184 × 156 × 320 mm |
| Enclosure | Sealed aluminium alloy case |
| BMS Protection | Over-charge / over-discharge / over-current / short-circuit / temperature |
| Communication | CAN (standard) · RS485 (standard) · Bluetooth (standard) |
| Telematics Option | GPS tracking (optional) |
| Cell Chemistry | Grade-A high-energy-density Li-ion cells |
| Cycle Life | Typical 1,500–2,000 cycles at 80% depth of discharge |
| Warranty | 2 years or 1,500 cycles, whichever comes first |
| Certification | CE · UN38.3 · MSDS (UL available on project request) |
| OEM / ODM | Accepted - voltage, capacity, case, connector, harness, protocol and branding customised |
Certification & Factory Testing
Compliance is the first question an overseas buyer asks about a 60V lithium battery that will be installed in a road vehicle. RYDBATT provides full documentation with every bulk order.
CE
European conformity for the battery pack and integrated BMS
UN38.3
Transport test summary, required for sea and air shipment
MSDS / SDS
Safety data sheet for handling, storage and logistics
UL
Available on project request where the destination market requires it
Every pack is built from grade-A high-energy-density Li-ion cells selected for tight capacity and impedance matching, so cells within a pack behave as a set rather than as a random assortment.
Factory testing performed on every unit
Cell matching and consistency screening before assembly
BMS function and protection-threshold verification on every unit
Charge and discharge cycle verification at rated current
High and low temperature chamber cycling
Vibration test for in-vehicle durability
Waterproof (IP67) verification
Cosmetic and seal inspection before packing
Full test reports and traceability records accompany bulk orders.
OEM & ODM Customization
RYDBATT is a lithium battery pack manufacturer for electric mobility, not a reseller. If your project does not fit a catalogue 60V 30Ah battery, the following are open to customisation.
| Customisable Item | Typical Range / Option |
|---|---|
| Nominal voltage | 48V / 60V / 72V |
| Capacity | 10Ah – 200Ah |
| Cell configuration | 20S2P and other series-parallel layouts |
| Case | Aluminium alloy, engineering plastic or stainless steel; custom dimensions to your drawing |
| Connector & harness | Pin assignment, cable length and gauge to your CAD |
| Communication protocol | CAN, RS485, UART; protocol document supplied at sampling stage |
| Monitoring | Bluetooth app, SOC display, GPS tracking, 4G option |
| Branding | Private label, laser logo, custom colour, custom manual and packaging |
| Certification | Apply UL, EN 15194, IEC 62133 or project-specific certificates |
How an OEM project runs
Requirement review - vehicle platform, motor power, daily mileage, environment, target market (3–7 days)
Design proposal - dimension, weight, current, protocol and safety proposal (7–14 days)
Sampling and bench testing - sample build plus ride or dyno validation (~30 days)
Small pre-production batch - your engineering team signs off consistency and calibration
Mass production and delivery - with full documentation and traceability
MOQ for a customised electric motorcycle battery is project-based. Sample units and datasheets are available on request - tell us your platform and we will come back with a 60V 30Ah solution that fits.
Why RYDBATT
A lithium battery pack manufacturer with engineering in Shenzhen and volume production in Huizhou.
Two manufacturing bases
Shenzhen headquarters for engineering and export, Huizhou plant for volume production.
In-house pack assembly
Cell screening, BMS integration, structural design, welding, capacity grading and ageing testing all under one roof.

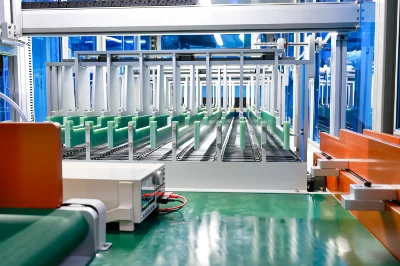

Automated lines
Consistent busbar welds and consistent cell matching batch to batch.
100% ageing test
No pack leaves the line without passing charge and discharge cycling.
Full traceability
Cell batch, assembly record and test report linked per serial number.
English engineering support
Schematics, protocol documents and firmware parameters provided to the customer, not kept in-house.
Frequently Asked Questions
Common questions from overseas buyers evaluating a 60V 30Ah electric motorcycle battery.
What is the rated capacity and energy of the RYDM6030?
+
-
The RYDM6030 is a 60V 30Ah battery pack rated at 1800Wh nominal energy, configured 20S2P. That places it among the higher-energy packs in the 60V class without moving into the heavier 60V 50Ah category.
How much current can this 60V 30Ah battery deliver?
+
-
Maximum continuous discharge current is 60A, with additional headroom for short high-current events such as launch acceleration and hill climbing. Maximum continuous charging current is 30A, so a standard 60V charger brings the pack back to usable charge within a few hours.
Is the battery waterproof?
+
-
Yes. The enclosure carries an IP67 rating - dust-tight and protected against temporary immersion. It is suitable for outdoor riding in rain and for pressure washing during servicing.
How does communication with my vehicle controller work?
+
-
CAN and RS485 communication are standard on this model, and Bluetooth is included for phone or dashboard monitoring. The pack reports state of charge, pack voltage and current, cell voltages, temperature and fault codes. Protocol documentation and parameter tables are supplied at the sampling stage, and firmware can be adapted to your VMCU.
Can I add GPS tracking?
+
-
Yes, GPS tracking is available as an option for fleet, rental and delivery operations where location monitoring and anti-theft are required.
