Product Overview

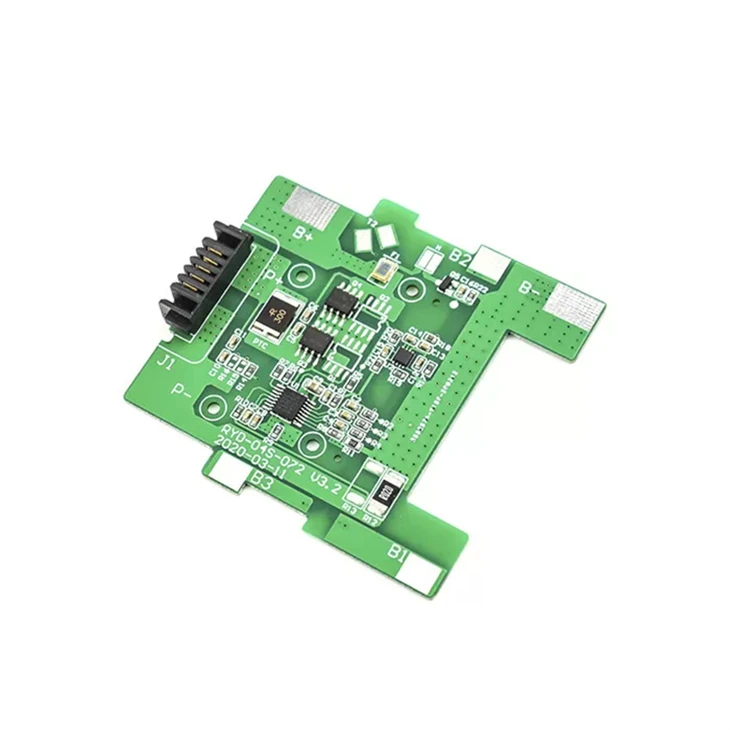

Ensure the safety and longevity of your 4-cell lithium-ion or lithium-polymer battery packs with our high-performance 4S Battery Management System (BMS). Designed for 14.4V applications, this BMS is ideal for electric tools, power tools, and other high-demand devices. With advanced protection features, this BMS safeguards your battery from overcharging, over-discharging, over-current, and short circuits, ensuring optimal performance and safety.
Key Features
Compatibility:
Designed for 4S Li-ion/Li-polymer battery packs (14.4V).
Comprehensive Protection:
Includes overcharge, over-discharge, over-current, and short-circuit protection.
High Precision:
Internally trimmed charge and discharge voltage limits for accurate monitoring.
Low Power Consumption:
Features a low-current standby mode when cells are discharged.
Compact Design:
Dimensions of 50 x 16 x 3.5 mm, making it easy to integrate into various battery packs.
High-Quality Construction:
100% tested before shipment to ensure reliability and durability.
Technical Specifications
|
Parameter |
Details |
|
Overcharge Protection |
Detection Voltage: 4.25±0.025V, Release Voltage: 4.15±0.05V |
|
Over-Discharge Protection |
Detection Voltage: 2.5±0.08V, Release Voltage: 3.0±0.1V |
|
Over-Current Protection |
Detection Current: 17±4A, Release Condition: Cut Load, Delay Time: 5-15ms |
|
Short-Circuit Protection |
Detection Condition: Exterior Short Circuit, Release Condition: Cut Circuit |
|
Interior Resistance |
Main Loop Electrify Resistance: RSS≤60mΩ |
|
Current Consumption |
Normal Operation: 50μA Max |
|
Dimensions |
50 x 16 x 3.5 mm |
Connection Guide
B+: Connect to the fourth battery's positive terminal.
B3+: Connect to the third battery's positive terminal.
B2+: Connect to the second battery's positive terminal.
B1+: Connect to the first battery's positive terminal.
B-: Connect to the first battery's negative terminal.
P+: Connect to the battery's output or the charger's positive terminal.
P-: Connect to the battery's output or the charger's negative terminal.
Usage Instructions
- Proper Connection: Follow the connection instructions carefully. Start from B- and connect lines in order from low to high positions to avoid irreversible damage.
- Avoid Short Circuits: Ensure no copper or tin bits cling to the guard shield during installation.
- Secure Installation: Fix the protection board to the battery group according to specifications. Avoid placing leading lines on the back of the board.
- Thermal Management: Use power supply lines with the proper diameter to prevent overheating and voltage drops during high-current discharge.
- Safety Precautions: Ensure proper insulation, heat dissipation, and tightness when installing the guard shield in the battery box to prevent internal short circuits.
- Storage: Keep fully charged battery packs out of reach of children.
- Troubleshooting: If any abnormal conditions occur during use, stop using the product immediately and consult a professional.
