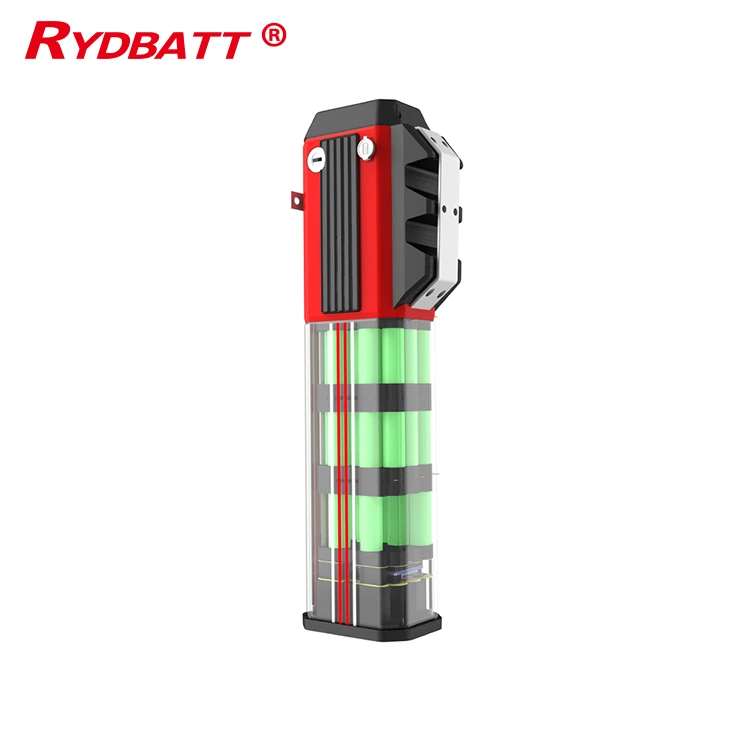

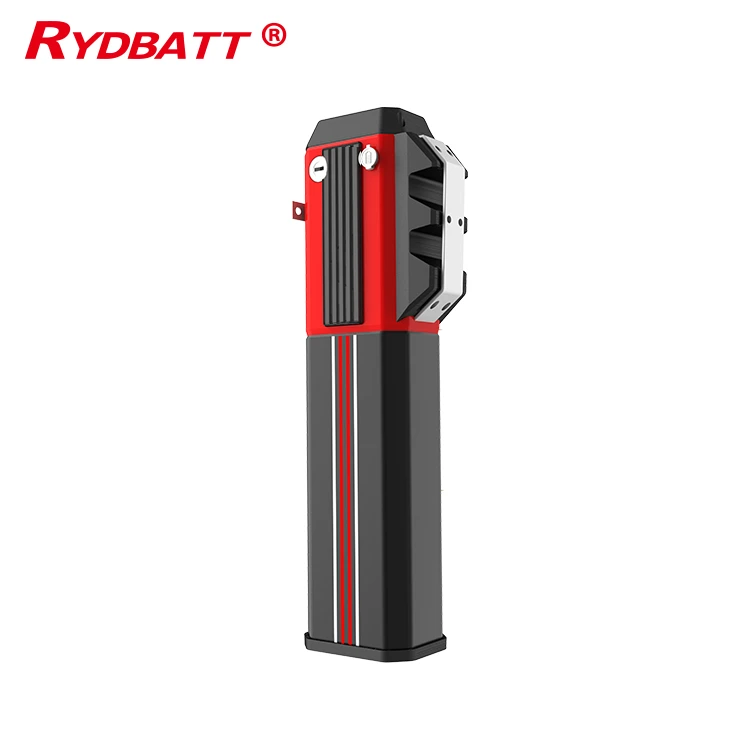

36V 13Ah Lithium-Ion Battery Pack

Shenzhen Ryder Electronics Co., Ltd. is one of the leading manufacturers and suppliers of 36v 13ah lithium-ion battery pack in China. Welcome to buy CE approved batteries in stock here and get free sample from our factory. All customized products are with high quality and low price.

Custom 36V 13Ah Lithium-Ion Battery Pack

Introduction

Specifically designed for industrial applications, it addresses the root cause of battery damage issues.

Battery swelling, low-temperature shutdowns, connector incompatibility causing delays... we've seen these problems that industrial equipment dreads far too often. Since 2005, we've focused on producing customized lithium battery packs, and this 36V 13Ah 10S5P battery pack was created specifically to address the real pain points of engineers, fleet managers, and equipment manufacturers.

With a total energy capacity of 468Wh, it can continuously output 13A current in a compact size, with an instantaneous peak current of up to 26A. It is often used directly to replace bulky lead-acid batteries and is widely used in AGVs, mobile robots, electric two-wheelers, and off-grid energy storage systems.

1. Key Features

High energy density-Utilizes high-quality 18650 cells, 10S5P configuration, total energy 468Wh, supports a continuous 13A discharge with a 26A peak, easily powering 500W brushless motors.

Ultra-long cycle life-Delives an extended cycle life of ≥500 cycles at 80% DOD, drastically reducing the replacement cost of your 36V industrial equipment fleet.

Integrated BMS protection system-multiple protections including overcharge, over-discharge, short circuit, and temperature protection-ensure equipment safety.

Wide operating temperature range--20°C to 60°C-suitable for harsh industrial environments.

Flexible discharge capability-standard 1C discharge, peak 2C instantaneous output, meeting high load requirements.

Compact and lightweight design-optimized structure, suitable for space-constrained industrial applications.

Custom configurations are supported-voltage, capacity, connectors, and housing can all be OEM customized.

Authoritative certification guarantee-passed multiple certifications including CE, UL, UN38.3, and MSDS.

2. Specifically designed to solve common pain points in batteries

Tired of battery packs failing within 3 months of cold storage? Our low-temp cells maintain >80% capacity at -20°C. In industrial applications, battery swelling, short lifespan, and safety hazards are common problems. Our 36V 13Ah lithium battery provides a systematic solution to these pain points:

3. Wide range of application scenarios

36V 13Ah lithium batteries are suitable for various industrial and civilian applications. The following are typical application scenarios:

AGV/AMR robots - long cycle life, low maintenance costs

Electric scooters & electric bicycles - 36V platform compatible with mainstream hub motors

Industrial equipment & power tools - 1C continuous discharge, 2C instantaneous burst

Solar energy storage system – multiple units can be connected in series and parallel for flexible capacity expansion.

Portable power station-468Wh capacity, a powerful assistant for outdoor operations.

Medical equipment – rigorous quality control, stable voltage output

Logistics and warehousing equipment – compact and lightweight, saving installation space

Communication & Security Systems - Reliable across wide temperature ranges, unaffected by outdoor environments

In any of the above scenarios, we can further adjust the voltage, capacity, size, and protocol according to the actual load and structural requirements.

4. Safety and quality assurance

A. Cell quality control

Uses Grade A 18650 lithium-ion cells (top Japanese, Korean, or domestic brands are available).

Capacity consistency deviation ≤ 3%

Internal resistance matching deviation ≤ 5mΩ/piece

B. BMS Multi-protection System

Overcharge protection: ≤4.25V/cell

Over-discharge protection: ≥2.75V/cell

Overcurrent/short circuit protection

Over-temperature protection: Automatic shut-off at >65°C

Balance protection function

C. Manufacturing Standards

Certified by ISO 9001:2015 Quality Management System

100% capacity test + aging test + vibration test + drop test

Passed UN38.3 transport safety test

5. Why choose our 36V 13Ah lithium battery?

20 Years of Custom Lithium Battery Experience-Focusing on Industrial Battery Pack R&D and Production Since 2005

Direct engineer interaction-no lengthy intermediaries, efficient communication of solutions, and preliminary design drawings delivered within 24 hours.

Truly low minimum order quantity-sample orders start from just one set, and small-batch trial production is also welcome.

Exporting to over 50 countries-fully certified and familiar with local customs clearance requirements.

12-month warranty - After-sales technical team provides real-time response, no shirking or delays.

Factory directly in China-no brand premium, you pay only for the product's intrinsic value.

As a custom 36V lithium battery manufacturer, we are committed to providing the most suitable solutions for each customer.

6. Technical Specifications

7. Schematic diagram of BMS protection circuit

Text battery cell pack (10S5P)

Battery cell pack (10S5P)

│

┌──────────────┼──────────────┐

│ BMS Protection Board │

│ ┌────────┐ ┌────────┐ │

Overcharge protection | Over-discharge protection |

│ └────────┘ └────────┘ │

│ ┌────────┐ ┌────────┐ │

Overcurrent protection | Short circuit protection |

│ └────────┘ └────────┘ │

│ ┌────────┐ ┌────────┐ │

Temperature Protection | Cell Balancing |

│ └────────┘ └────────┘ │

└──────────────┬──────────────┘

│

Output connector → Device/Charger

Note: The BMS has an automatic recovery mechanism (partial protection support) and supports communication interfaces such as UART/SMBus to achieve real-time monitoring.

8. OEM Customization Process

Requirements communication – Clarify requirements for voltage, capacity, size, connectors, certifications, etc.

Solution Design - Engineers provide technical solutions and a Bill of Materials (BOM) , and produce design drawings within 24 hours.

Sample making - Completed sample and test report

Sample confirmation - Contract signed after customer confirmation

Mass production – Delivery within 30-45 working days, with quality inspection report.

Battery cell brand, BMS parameters, casing shape, and logo silkscreen printing can all be customized to your needs.

9. Certification Certificate

CE certification: Meets EU safety and EMC requirements

UN38.3: Essential certification for global air transport

MSDS/SDS: Safety Data Sheet for Transport of Chemicals

UL Certification: Safety Certification for the North American Market

ISO 9001:2015: Quality Management System Certification

RoHS: Restriction of Hazardous Substances

10. FAQ

What does 10S5P specifically represent?

10S5P represents 10 cells connected in series as a group, and then 5 such groups are connected in parallel. This structure balances voltage and capacity, providing the optimal combination for 36V 13Ah.

How to choose between 36V and 48V battery packs?

36V is suitable for low-to-medium power devices, such as electric scooters and small to medium-sized AGVs; 48V is more suitable for high-power applications. You can choose based on the motor's rated voltage and operating current.

How long will it last on a full charge?

Based on a continuous discharge of 13A, it can run for approximately 1 hour. Actual runtime depends on the load size; we can provide a detailed discharge curve report based on your operating conditions.

Can it be used on electric bicycles or scooters?

Absolutely. 36V lithium battery packs are the mainstream choice for this type of vehicle, and are compatible with the vast majority of controllers and motors.

What protection functions does the battery pack have?

It integrates overcharge, over-discharge, overcurrent, short circuit, temperature protection and cell balancing functions to comprehensively protect the safety of batteries and devices.

Do you accept OEM or ODM customization?

We are an OEM lithium battery pack manufacturer, supporting full customization of cell brands, BMS parameters, casings, connectors, logos, etc.

Do you have the necessary certifications for export?

Regular shipments include CE, UN38.3 and MSDS certifications. For the North American market, UL certification can be applied for to ensure export compliance.

What is the minimum order quantity?

Sample orders are available as low as one set, and small batches are also supported for mass production. Please contact the sales manager directly to confirm the current policy.

How to properly store and maintain it?

It is recommended to store it in a dry environment of -10°C to 35°C. If it is not used for a long time, recharge the battery to about 50% every 3 months.

How long is the warranty period?

We offer a 12-month warranty, during which free repair or replacement will be provided for any non-human-caused quality issues, along with remote technical support.

Get your customized lithium battery solution

Tell us your device power, battery life requirements, installation space, and expected costs, and our engineers will contact you within 24 hours.
