Product Details:
|
|
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | RYDBATT |
| Certification: | CE |
| Model Number: | RYD-16LTR |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 500 |
| Price: | Negotiated The Price |
| Packaging Details: | Customer requirements |
| Delivery Time: | 45 |
| Payment Terms: | D/P, T/T, |
| Supply Ability: | 800PCS /Day |

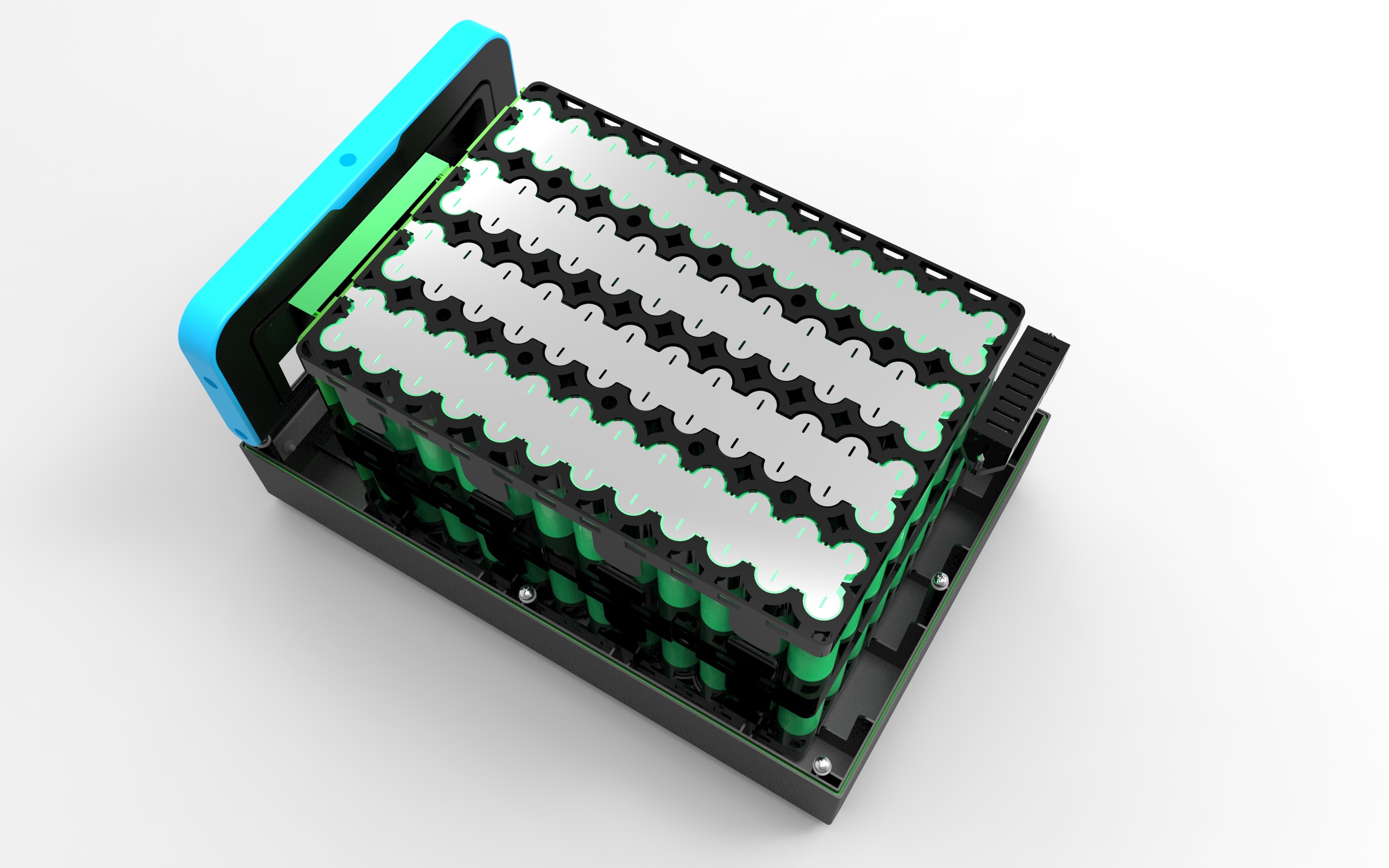

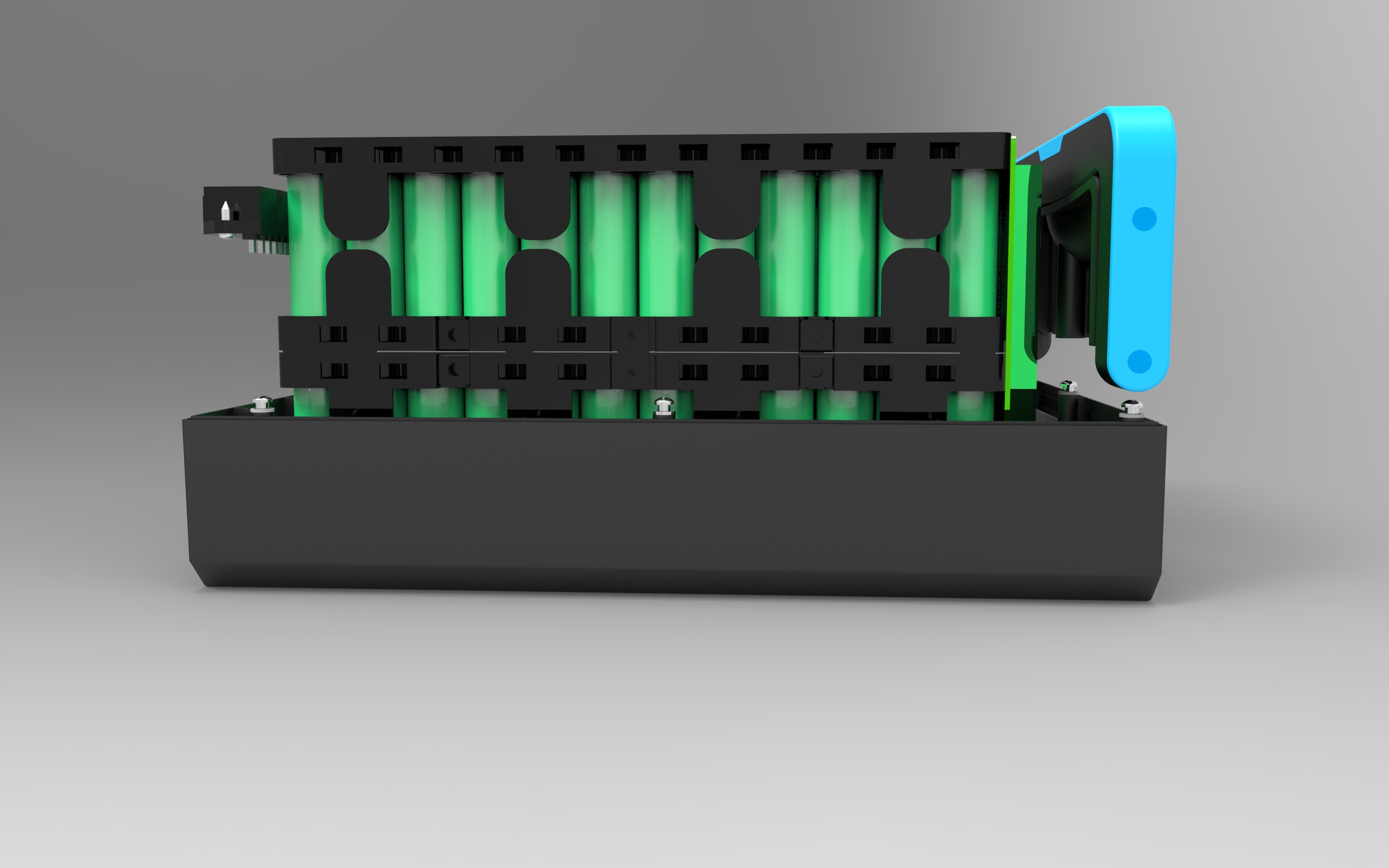

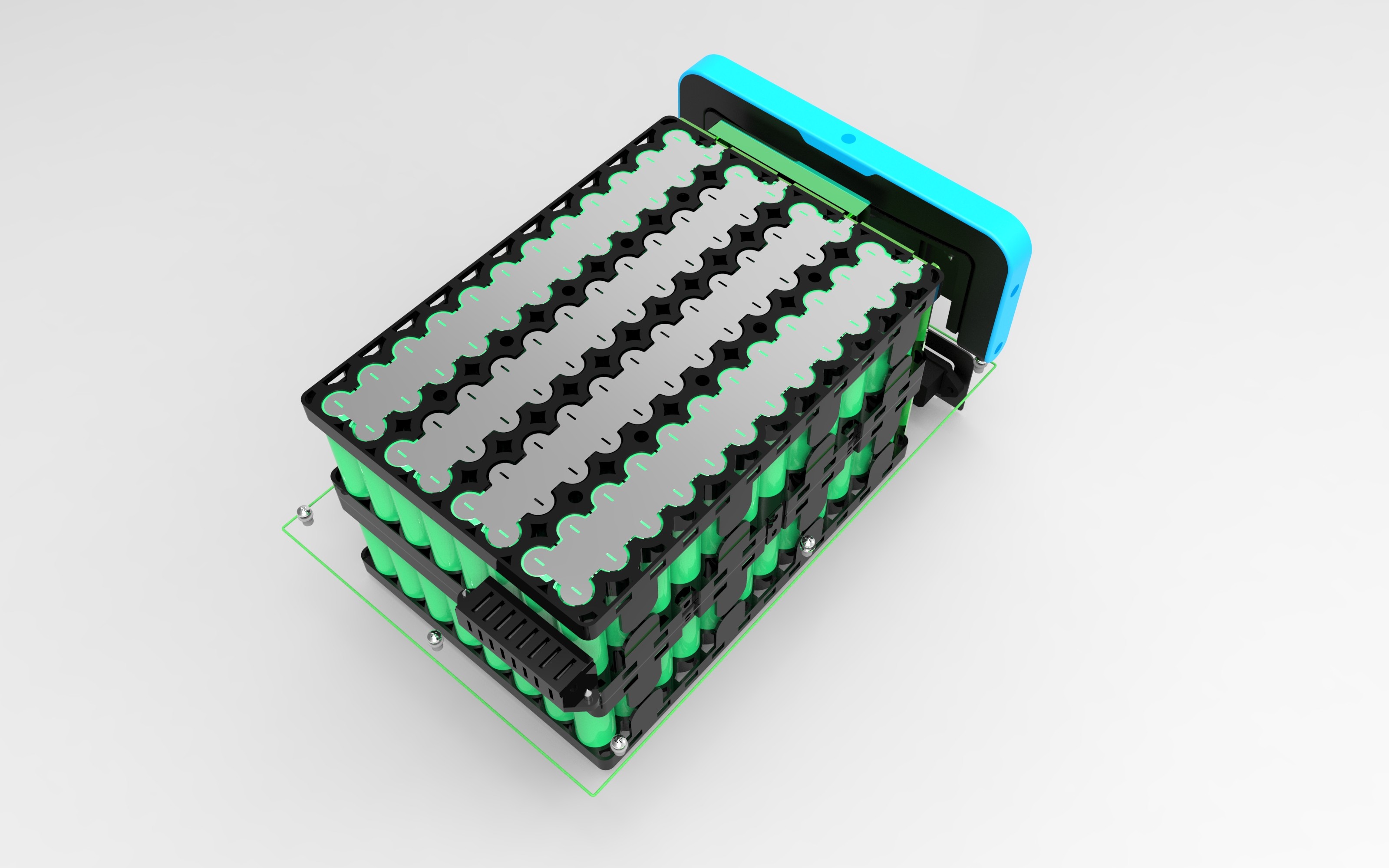

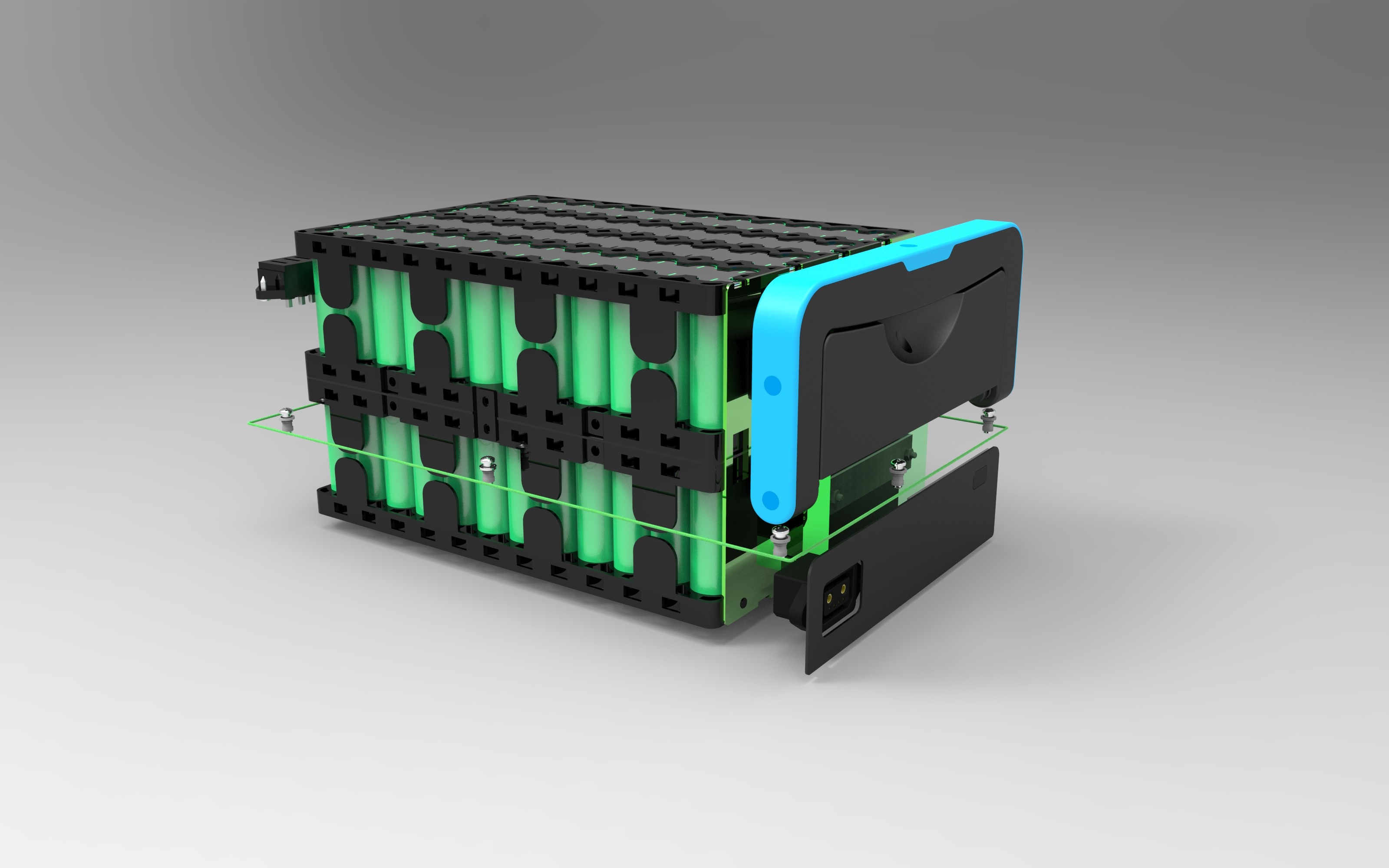

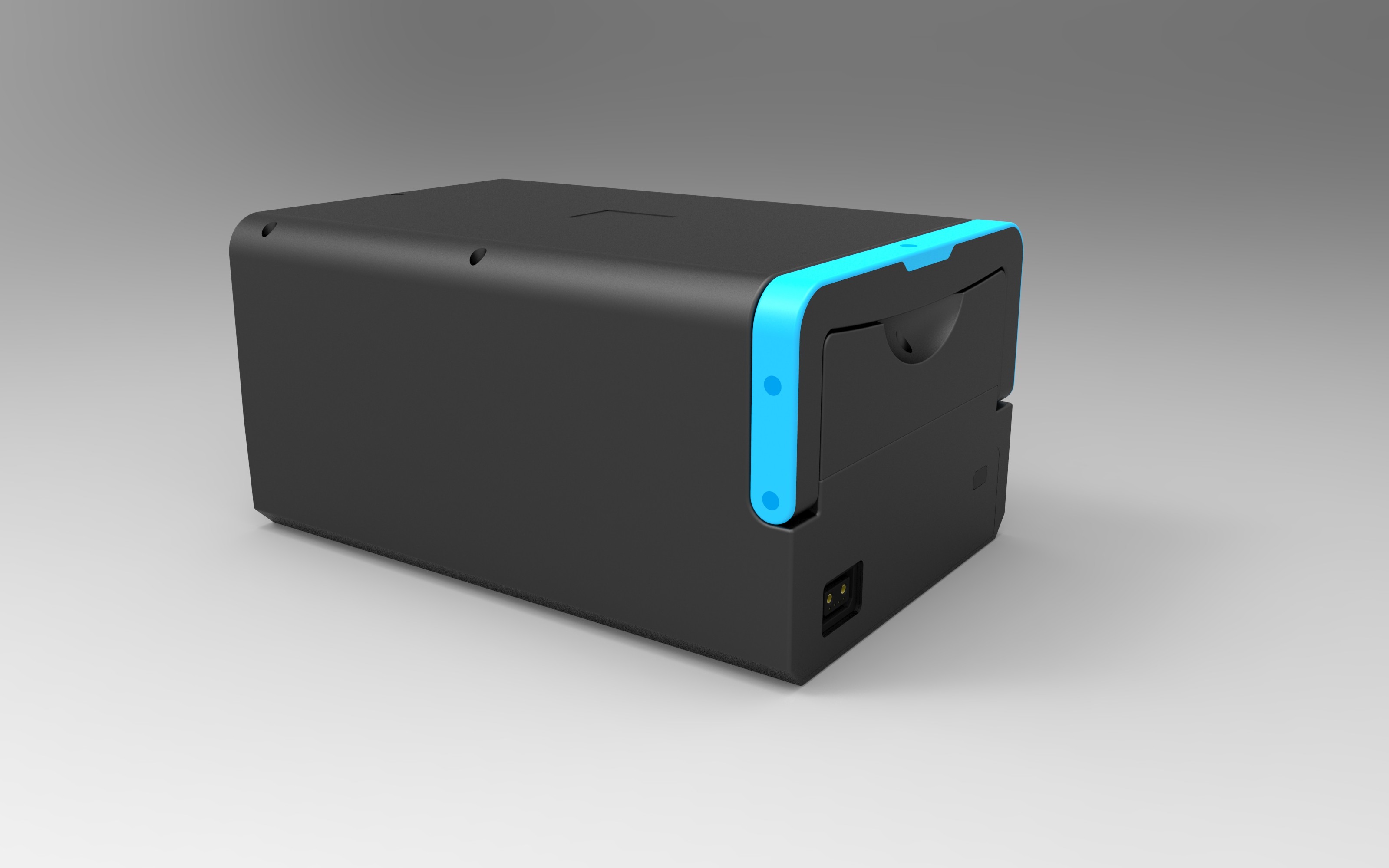

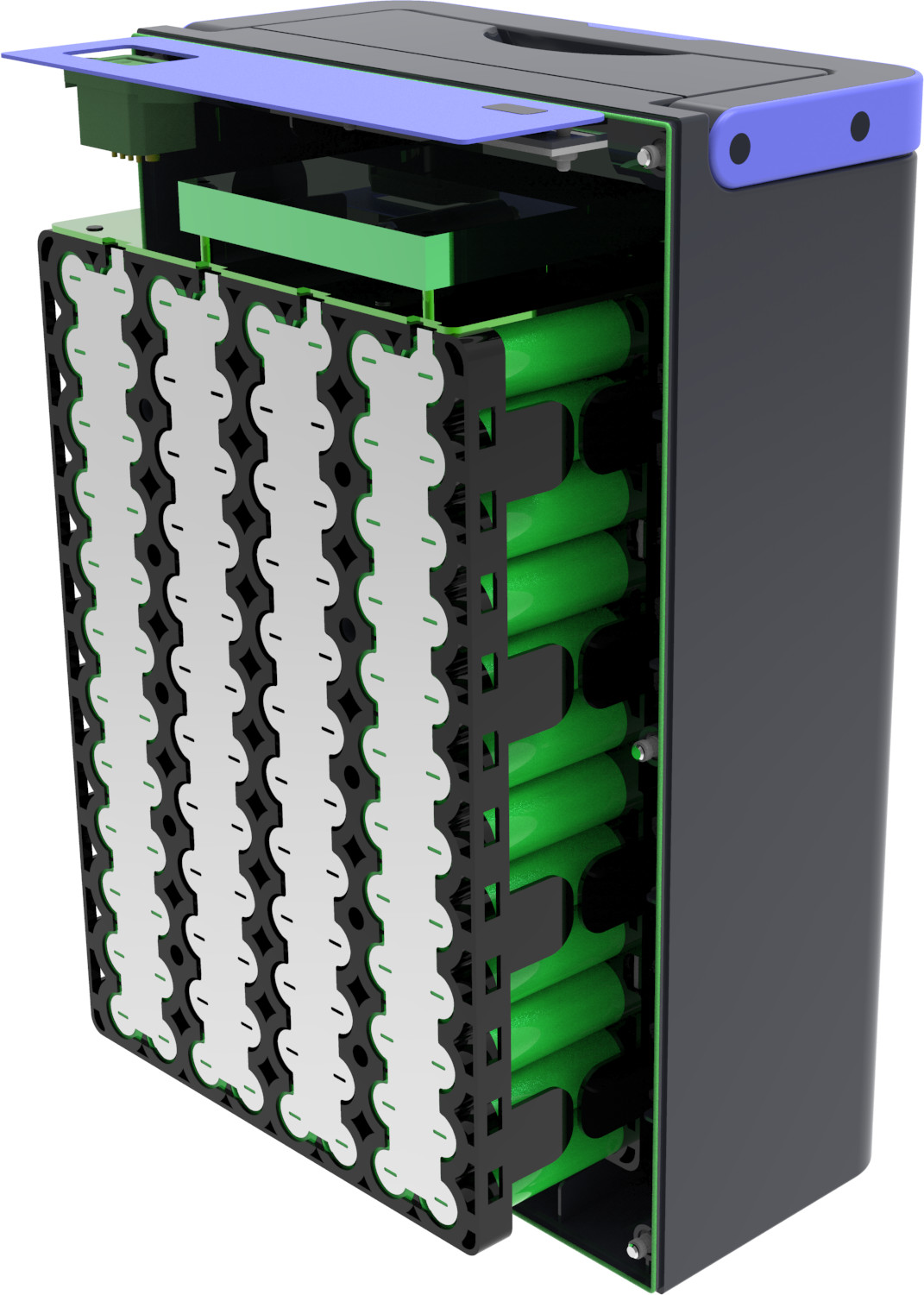

MODEL
16LTR-30C -M603-ZN
SHENZHEN RYDER ELECTRONICS CO., LTD.
Cell Protection Board: MS6050-03-V01 / 16S150A -RS485/SW16S30C5L-ZN02
Communication Protocol: RS485
Fault State Detection: YES
SOC Display: YES
Product specifications
| NO. | Items | Specifications | Remarks | |
| 1 | Product Weight | 11KG±0.5 | ||
| Product Size | 200*150*300mm | |||
| 2 | Rated Output | Standard value | 30.0Ah | 0.5C Discharge Standard |
| Minimum value | ||||
| 3 | Shipping Voltage | &60V | m80%POWER | |
| 4 | Rated Voltage | 60V | ||
| 5 | Discharge Cut-Off Voltage | 44.8V | Discharge termination voltage | |
| 6 | Charge Cut-Off Voltage | 67.2V | ||
| 7 | Finished Product Impedance | M200mQ | At 50% capacity with 1 kHz AC test value | |
| 8 | Standard Charging Current | <12A | ||
| 9 | Maximum Charge Current | 15A | ||
| 10 | Standard Discharge Current | 20A | ||
| 11 | Maximum Continuous Discharge Current | 50A | 1.5C | |
| 12 | Short Circuit Protection | YES | ||
| 13 | Short-Circuit Protection Recovery Method | Disconnect the load | ||
| 14 | Soft Switch Function | YES | ||
| 15 | Prefilled Output Switch Function | YES | ||
Protection Plate Configuration
|
| NO. | Items | Content |
| 1 | Model | TOPBAND |
| 2 | Hardware Board Coding | 6050-03-V01 |
| 3 | Software Release | SW16S30C5L-ZN02 |
| 4 | Charge Discharge Function | No charge/discharge trigger |
| 5 |
Hardware Functionality |
16 S /50A /485 communication/two-way weak current switch |
| 6 | Functional Description | Overcharge protection, over discharge protection, overload protection, short circuit protection, output soft switching function, pre charge control function. |
18650 Batteries
Some things to consider when choosing a battery:
Style
Flat Top - The positive end of the battery is a flat surface.
Button Top - The positive end of battery is protruding.
Nominal Capacity
This is the minimum capacity of the battery.
Capacity is measured by mAh (Milliamp Hours).
mAh is a unit for measuring electrical power over time.
A higher mAh rating means the (fully-charged) battery can power a device that consumes more power and/or for a longer amount of time before becoming depleted and needing to be re-charged
Continuous Discharge Rating
The maximum current at which the battery can be discharged continuously without damaging the battery or reducing its capacity as defined by the manufacturer.
Pulse Discharge Rating
The maximum current at which the battery can be discharged for a short period of time without damaging the battery or reducing its capacity as defined by the manufacturer.
Nominal Voltage
A value assigned for classification purposes. Operation may actually be possible within a range, and the nominal voltage is often the midpoint of that range.
Protected
Protected batteries have a small electronic circuit integrated into the cell packaging. This circuit protects the battery against common dangers, such as overcharge, over discharge, short circuit/over current, and temperature. Please keep in mind a protected battery will be slightly longer do to the integrated circuit.
